220V Relay for Distillers (#060019)

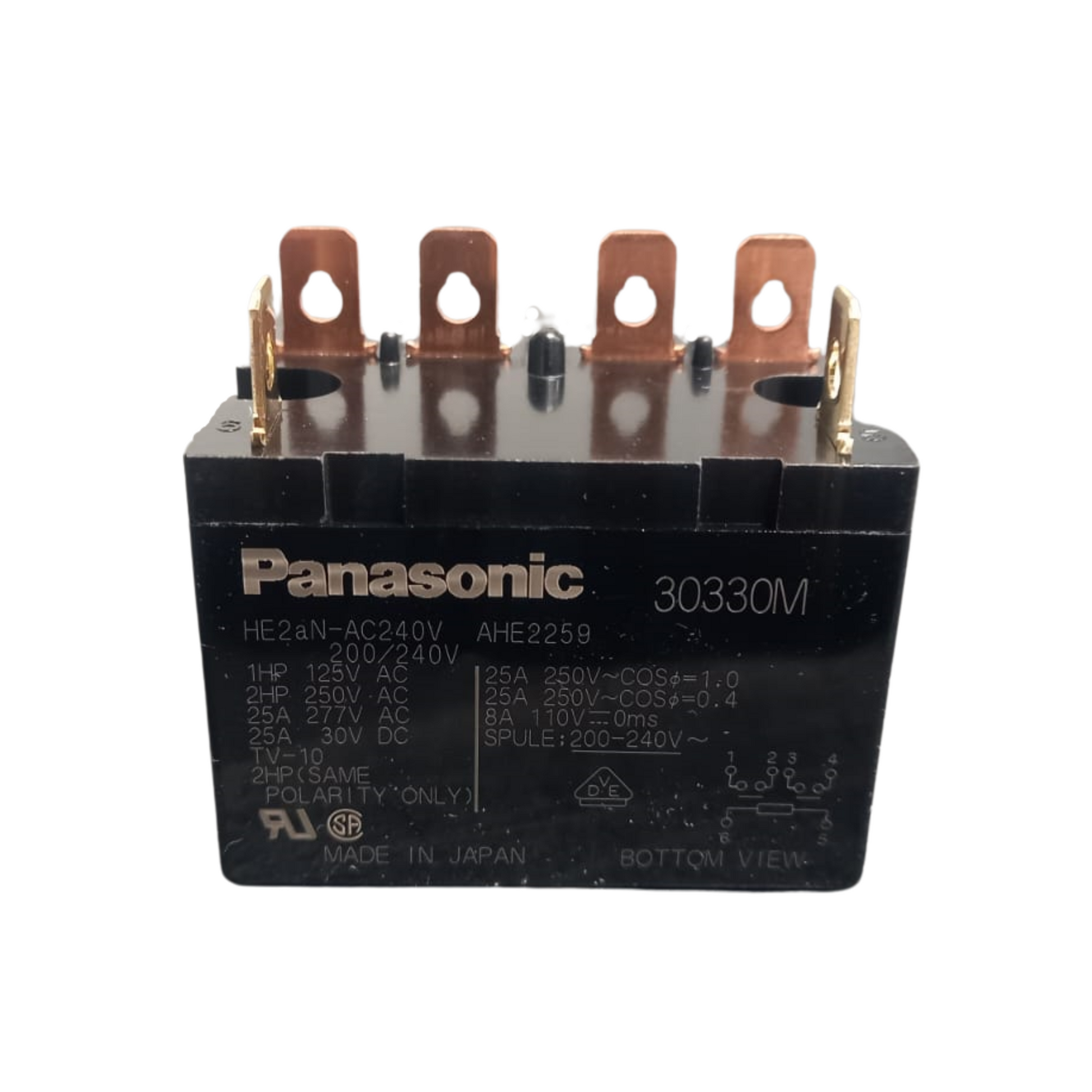

Panasonic HE2aN-AC240V Relay Switch – 240V

The Panasonic HE2aN-AC240V relay switch is a high-performance, industrial-grade component designed for use in commercial water systems, including distillers (international) and filtration units. Engineered for reliability and durability, this relay is ideal for controlling high voltage loads with precision and safety.

Key Features:

• Voltage Rating: 200–240V AC coil voltage
• Contact Ratings:
  • 1 HP at 125V AC
  • 2 HP at 250V AC
  • 3A at 277V AC
  • 25A at 30V DC
  • 25A at 250V AC (cosφ = 1.0 and 0.4)
  • 8A at 110V DC (0ms)
• Configuration: Double-pole relay (2HP same polarity only)
• Application: Suitable for switching motors, pumps, and other high-load components in commercial water systems
• Build: Compact, durable design with bottom-view terminal layout for easy panel integration
• Compliance: TV-10 rated for high inrush current applications

This relay ensures dependable operation in demanding environments, making it a trusted choice for OEMs and service technicians working with Precision Water Systems and other commercial-grade equipment.
